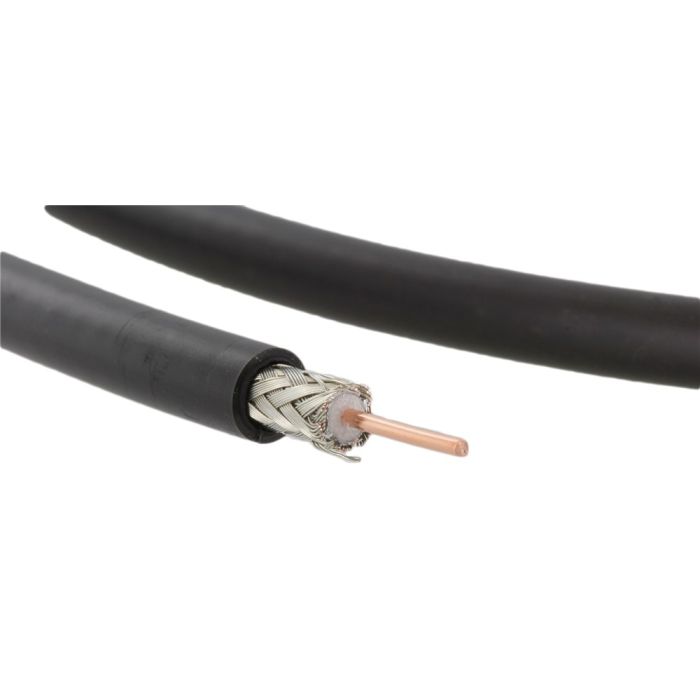

Browning Low Loss RG-58 Cable Custom Length (per foot)
Description / Browning Low Loss RG-58 Cable Custom Length (per foot)
Build your own cable!
Browning Low Loss RG-58 coaxial cable can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can crimp the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!
Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.
Browning Low Loss RG-58 Cable
- Braided 0.195 inch diameter coaxial cable
- Low loss RG-58 type
- High velocity gas-injected foam dielectric - 76%
- 100% shield coverage—95% tinned copper braid plus bonded aluminum tape
- Solid bare copper center conductor
- Use standard RG-58 crimp connectors
Electrical Specifications
- Maximum frequency - 16.2 GHz
- Velocity of propagation - 76%
- DC breakdown - 1000 Volts
- Peak power rating - 2.5kW
- DC resistance, inner conductor (ohms) - 7.6/1000'
- DC resistance, outer conductor (ohms) - 4.90/1000'
- Jacket spark-volts RMS - 3,000
- Impedence - 50 Ohms
- Capacitance - 25.40 pF/ft.
- Inductance - 0.064 uH/ft.
- Shielding effectiveness - >90 dB
- Phase Stability - < 10 ppm/C
BR-195 Attenuation and Average Power Rating
| Frequency MHz | Attenuation db/100ft. |
Attenuation dB/100m |
Avg. Power KW |
|---|---|---|---|
| 30 | 2.0 | 6.5 | 0.89 |
| 50 | 2.5 | 8.4 | 0.68 |
| 150 | 4.4 | 14.6 | 0.39 |
| 220 | 5.4 | 17.7 | 0.32 |
| 450 | 7.8 | 25.5 | 0.22 |
| 900 | 11.1 | 36.5 | 0.16 |
| 1500 | 14.5 | 47.7 | 0.12 |
| 1800 | 16.0 | 52.5 | 0.11 |
| 2000 | 16.9 | 55.4 | 0.10 |
| 2500 | 19.0 | 62.4 | 0.09 |
| 2800 | 29.9 | 98.1 | 0.06 |
More Information
| Coax Size | .195" / RG-58 / 5.4mm |
|---|
