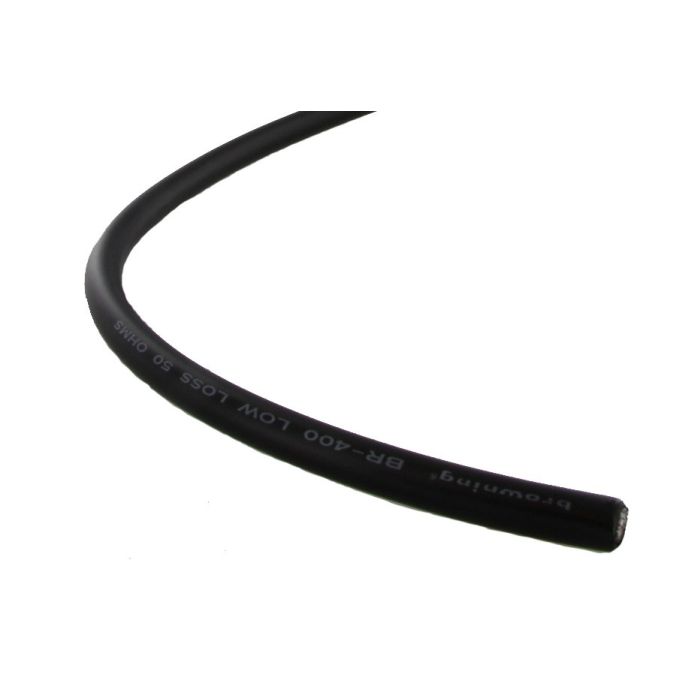

Browning BR-400 Coax Cable Custom Length (per foot)

SKU: BR-400-1-MR
Browning BR-400 cable can be ordered in custom lengths according to your needs.

In stock

From $1.49

To $39.47

Customize Browning BR-400 Coax Cable Custom Length (per foot)

Browning BR-400 Coax Cable Custom Length (per foot)   + $1.49
  • Buy 12 for $1.48 each and save 1%
  • Buy 18 for $1.47 each and save 1%
  • Buy 24 for $1.46 each and save 2%
  • Buy 30 for $1.45 each and save 3%
  • Buy 40 for $1.44 each and save 3%
  • Buy 50 for $1.43 each and save 4%
  • Buy 60 for $1.42 each and save 5%
  • Buy 70 for $1.40 each and save 6%
  • Buy 80 for $1.39 each and save 7%
  • Buy 90 for $1.38 each and save 7%
  • Buy 100 for $1.37 each and save 8%
  • Buy 200 for $1.24 each and save 17%
  • Buy 300 for $1.11 each and save 26%
  • Buy 400 for $0.99 each and save 34%
  • Buy 500 for $0.86 each and save 42%

Bundle Details

Browning BR-400 Coax Cable Custom Length (per foot)

Summary

Final product price
Jump to: Description Reviews

Description / Browning BR-400 Coax Cable Custom Length (per foot)

Build your own cable!

Browning BR-400 cable can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can solder or crimp the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!

Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.

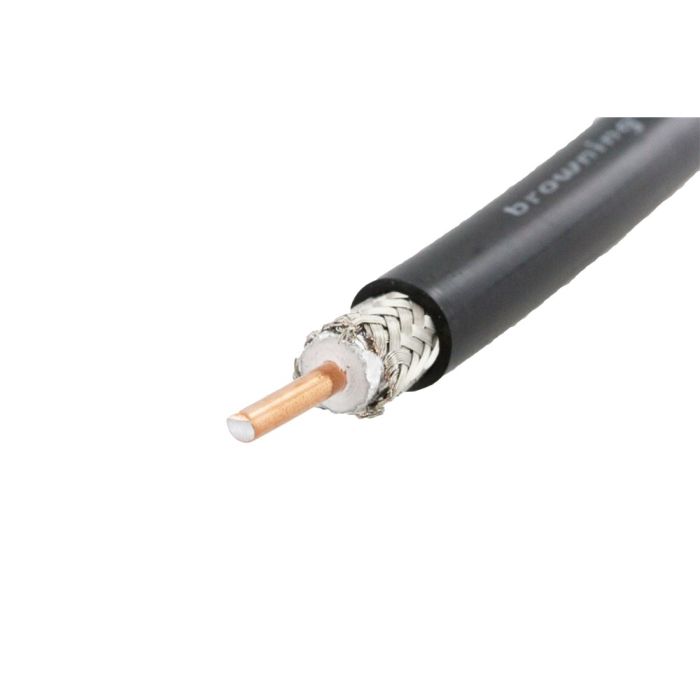

Browning BR-400 Coax Cable
  • Braided 0.405 inch diameter coaxial cable
  • Low loss RG-8/RG-213/9913 type
  • High velocity gas-injected foam polyethylene dielectric - 85%
  • 100% shield coverage—95% tinned copper braid plus bonded aluminum tape
  • Copper coated aluminum inner conductor
  • Black polyethylene jacket

Electrical Specifications
  • Velocity of propagation - 85%
  • DC breakdown - 2500 Volts
  • Peak power rating - 16kW
  • DC resistance, inner conductor (ohms) - 1,39/1000'(4.56/km)
  • DC resistance, outer conductor (ohms) - 1.65/1000' (5.41/km)
  • Jacket spark-volts RMS - 8,000
  • Impedence - 50 Ohms
  • Capacitance - 23.9 pF/ft. (78.4 pF/m)
  • Inductance - 0.060 uH/ft. (0.20 uH/m)
  • Shielding effectiveness - >90 dB

BR-400 Attenuation and Average Power Rating

Frequency MHz Attenuation
db/100ft.		 Attenuation
dB/100m		 Avg. Power KW
30 0.7 2.2 3.3
50 0.9 2.9 2.6
150 1.5 5.0 1.5
220 1.9 6.1 1.2
450 2.7 8.9 0.8
900 3.9 12.8 0.56
1500 5.1 16.8 0.43
1800 5.7 18.6 0.39
2000 6.0 19.6 0.37
2500 6.7 22 0.33

More Information

Coax Size .400" / 10mm
