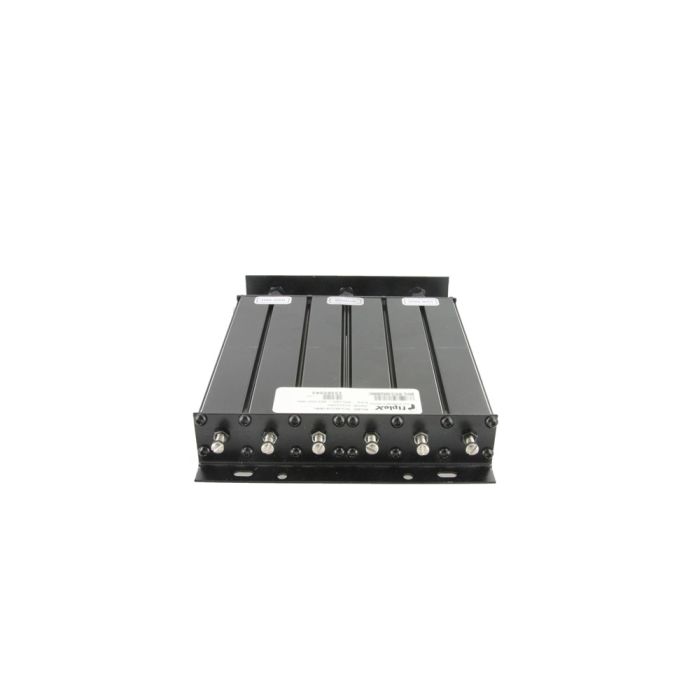

Fiplex DCL4533A Mobile Duplexer 400-520 MHz BNC Connector
Description / Fiplex DCL4533A Mobile Duplexer 400-520 MHz BNC Connector
Fiplex DCL Series Mobile Band Reject Duplexers such as the DCL4533A-BNC are coaxial mobile duplexers for use in systems up to 50 watts. Applications include digital and analog wireless radio, repeaters up to 50 watts and mobile full duplex radios.
DCL 4533A-BNC Specifications
- Coaxial mobile duplexer
- Band reject configuration
- Semi-rigid coaxial cables are used to improve Tx to Rx isolation
- Six TEM silver plated copper resonators, housed in 6063-T6 aluminium cavities
DCL 4533A-BNC Specifications
- Frequency Range: 400–520 MHz
- Tx–Rx Separation: 5.0 MHz
- Tx-Rx Band Width: 0.050 MHz
- Continuous Power Input, Max: 50 W
- Insertion Loss Tx - Antenna: 1.5 dB max
- Insertion Loss Antenna - Rx: 1.5 dB max
- Tx Noise Rejection at Rx Freq.: 75dB min, 90dB typ
- Rx-Tx Isolation at Tx Freq.: 75dB min, 90dB typ
- RL: 15dB min, 22dB typ
- Connectors: BNC Female
- Temperature range: -22º to 140º F (-30º to +60º C)
- Dimensions: 1.25 x 6.1 x 8.15 inches (31 x 155 x 201 mm)
- Weight: 2.2 lbs (1 kg)
More Information
| Manufacturer | Fiplex Communications |
|---|
