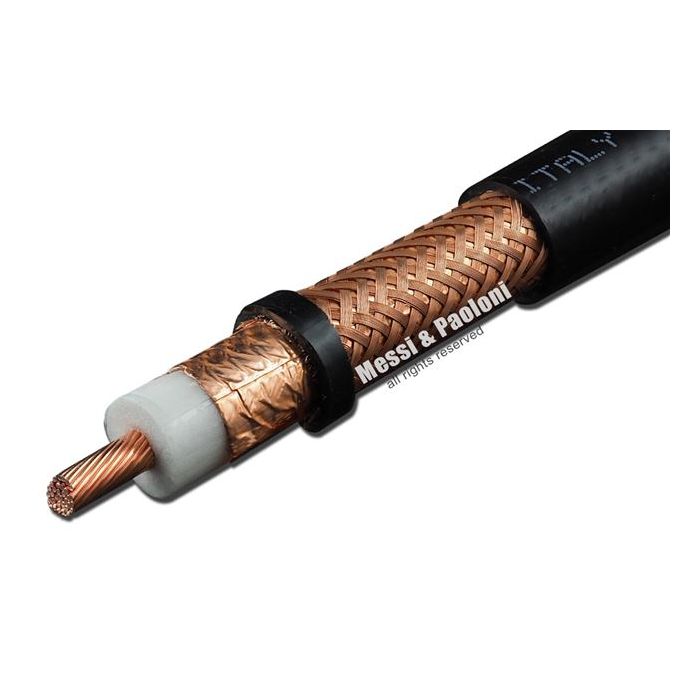

Messi & Paoloni Extraflex Bury 13 Premium .500" Coax Cable - Custom Length (per foot)
Description / Messi & Paoloni Extraflex Bury 13 Premium .500" Coax Cable - Custom Length (per foot)
Build your own cable!
Messi & Paoloni Extraflex Bury 13 premium coaxial cable is specifically made for direct burial and outdoor use and is a must-have for the most ambitious installations. It can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can assemble the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!
Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.
Why choose Messi & Paoloni Extraflex Bury 13 cable?
- 12.7mm (.500") cable
- UV shielded polyethylene for direct burial and outdoor use
- Coaxial cable has 37 wires on the central conductor
- Designed to withstand tight bending and rotor antennas
- Equal attenuations to stiffer and bulkier 15mm (.500") cables
- A must-have for the most ambitious installations
- Excellent performance with the lowest possible signal loss, even at higher frequencies and long distances
Extraflex Bury 13 Attenuation (68°F / 20°C)
| Frequency MHz | Attenuation db/100ft. |
Attenuation dB/100m |
|---|---|---|
| 1.8 MHz | 0.1 | 0.5 |
| 3.5 MHz | 0.2 | 0.6 |
| 7 MHz | 0.2 | 0.8 |
| 10 MHz | 0.3 | 1.0 |
| 14 MHz | 0.3 | 1.1 |
| 21 MHz | 0.4 | 1.3 |
| 28 MHz | 0.4 | 1.5 |
| 50 MHz | 0.6 | 2.0 |
| 100 MHz | 0.8 | 2.8 |
| 144 MHz | 1.1 | 3.6 |
| 200 MHz | 1.3 | 4.2 |
| 400 MHz | 1.8 | 6.1 |
| 430 MHz | 1.9 | 6.4 |
| 800 MHz | 2.7 | 9.0 |
| 1000 MHz | 3.0 | 10.1 |
| 1296 MHz | 3.5 | 11.7 |
| 2400 MHz | 5.0 | 16.6 |
| 3000 MHz | 5.7 | 18.9 |
| 4000 MHz | 6.8 | 22.4 |
| 5000 MHz | 7.8 | 25.6 |
| 6000 MHz | 8.7 | 28.7 |
| 7000 MHz | 9.6 | 31.7 |
| 8000 MHz | 10.5 | 34.5 |
| 9000 MHz | 11.4 | 37.5 |
| 10000 MHz | 12.3 | 40.5 |
| 12000 MHz | 14.0 | 46.0 |
Videos
More Information
| Warranty | 2 Years |
|---|---|
| Coax Size | .500" / 13mm |
