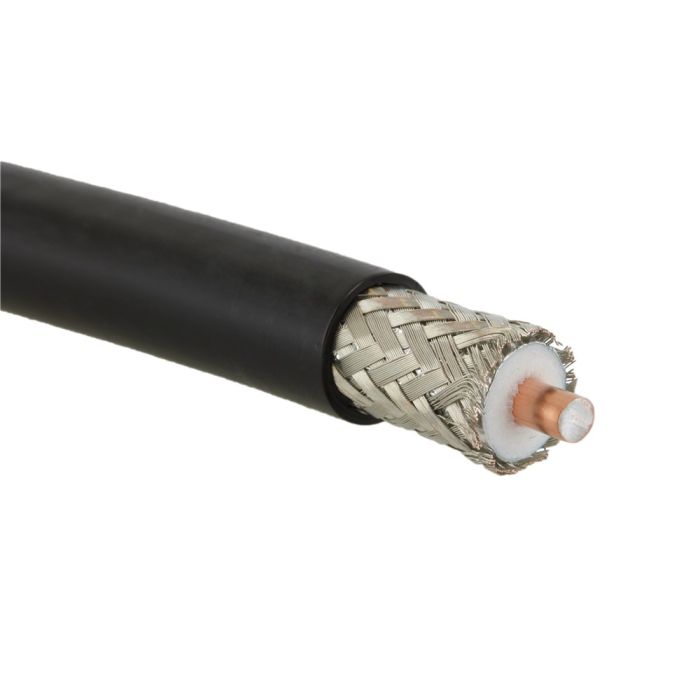

Signal Inside 600 Type .590" Braided Coaxial Cable (500 feet)
Description / Signal Inside 600 Type .590" Braided Coaxial Cable (500 feet)
RF Industries Signal Inside 600 is braided 0.590" inch diameter braided coaxial cable designed for 600 Series compatible type crimp connectors. Great for antenna projects! 500 foot spool.
RF Industries SI-600 Braided Coax Cable
Electrical Specifications
Mechanical Specifications
RF Industries SI-600 Braided Coax Cable
- 0.176 in. (4.47mm) BCCAI inner conductor
- 0.455 in. (11.56mm) Foam P.E. Dialectric
- 0.461 in.(11.71mm) aluminum tape outer conductor
- Copper coated aluminum inner conductor
- 0.490 in. (12.45mm) tinned copper braid
- 0.590 inch (14.99mm) diameter PVC jacket
Electrical Specifications
- Velocity of propagation - 87%
- Impedence - 50 Ohms
- Capacitance - 23.4 pF/ft. (76.6 pF/m)
- DC resistance, inner conductor (ohms) - 0.53/1000'(1.70/km)
- DC resistance, outer conductor (ohms) - 1.2/1000' (3.90/km)
- Voltage withstand - 4000 Volts DC
- Jacket spark - 8000 Volts RMS
Mechanical Specifications
- Bend radius - installation - 1.5 in. (38.10mm)
- Bend radius - repeated - 6.0 in. (152.40mm)
- Tensile strength - 350 lbs. (158.90kg.)
SI-600 Attenuation vs. Frequency
| Frequency MHz | Attenuation db/100ft. |
Attenuation dB/100m |
|---|---|---|
| 30 | 0.4 | 1.4 |
| 50 | 0.5 | 1.8 |
| 150 | 1.0 | 3.2 |
| 220 | 1.2 | 3.9 |
| 450 | 1.7 | 5.6 |
| 900 | 2.5 | 8.2 |
| 1500 | 3.3 | 10.8 |
| 1800 | 3.7 | 12.1 |
| 2000 | 3.9 | 12.8 |
| 2500 | 4.4 | 14.4 |
| 5800 | 7.3 | 23.8 |
More Information
| Manufacturer | RF Industries |
|---|---|
| Coax Size | .600" |
