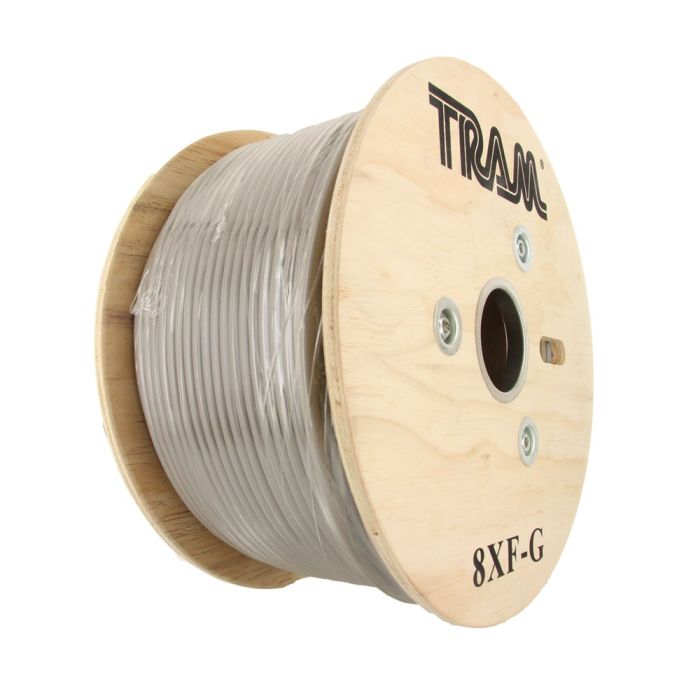

Tram RG-8X Double Shield Coaxial Cable (500 ft./Gray Jacket)

SKU: 8XF-G
Tram 8XF-G is double shielded coaxial cable designed for RG-8X crimp connectors.

Out of stock

$169.99
Jump to: Description Reviews

Description / Tram RG-8X Double Shield Coaxial Cable (500 ft./Gray Jacket)

Tram 8XF-G is double shielded coaxial cable designed for RG-8X crimp connectors. Great for antenna projects! 500 foot spool.

Tram Double Shielded RG-8X Cable
  • RG-8X type
  • Bare copper braid 95% aluminum foil 50 ohms 78% VOP
  • Stranded bare copper center conductor 19/29 ga. (0.011"/19/0.287mm)
  • Polyethylene foam insulation 0.155'/3.94mm
  • Capacitance: 25.90 pF/ft. (85.00 pF/m)
  • Gray PVC jacket 0.242" (6.15mm)

8XF-G Attenuation

Frequency MHz Attenuation
db/ft.		 Attenuation
dB/m
100 3.69 12.10
200 5.40 17.7
400 7.99 26.20
700 11.10 36.40
900 12.80 42.00

More Information

Manufacturer Tram
Coax Size .240" / RG-8X / 7mm
