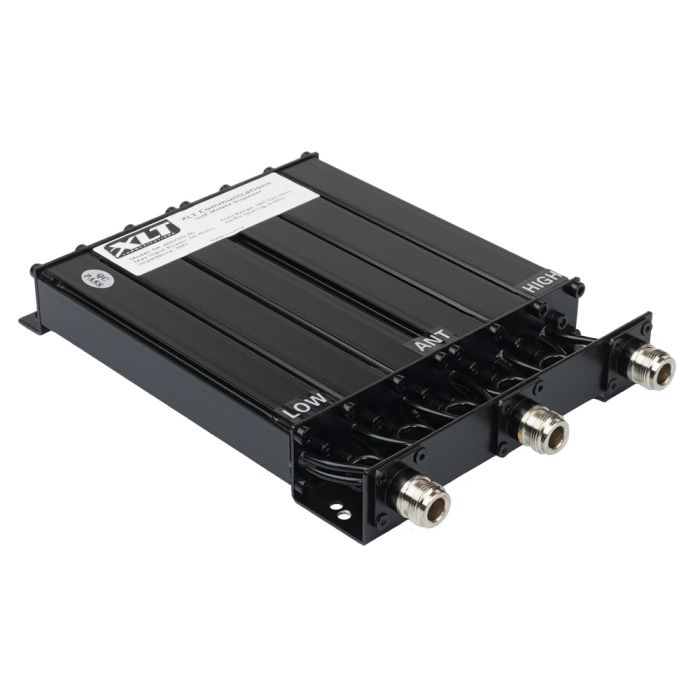

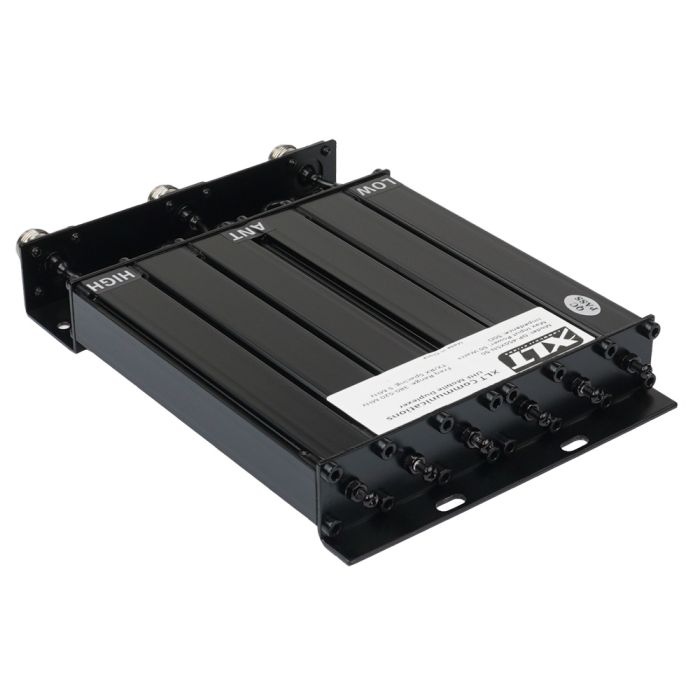

XLT Communications UHF Mobile Duplexer (50 Watt, 400-520 MHz, 5 MHz Split)
Description / XLT Communications UHF Mobile Duplexer (50 Watt, 400-520 MHz, 5 MHz Split)
XLT DP-450X5N-50 Mobile Band Duplexer is designed and tuned for use on 400-520 MHz frequencies up to 50 watts. Applications include repeaters up to 50 watts and mobile full duplex radios. Small size allows for it to fit in the chassis for some repeaters.
DP-450X5N-50 Specifications
- Mobile band duplexer
- Compact size for installation inside small repeater chassis
- Duplexer can be customized and supports frequency range 400-520 Mhz with 5 MHz spacing
- Default configured frequencies: 451.8125 / 456.8125
- N Female connectors
DP-450X5N-50 Specifications
- Supported Frequency Range: 400-520 MHz
- Pre-Configured Frequency Range: 451.8125 / 456.8125 MHz
- Low Pass (RX): 400-520MHz
- High Pass (TX): 400-520MHz
- Tx–Rx Separation: Typical≥5MHz
- Tx-Rx Band Width: ±100KHz
- Maximum Input Power: 50W
- Insertion Loss: ≤1.2dB@5MHz RX-TX spacing, ≤1dB@10MHz RX-TX spacing
- Impedance: 50Ω
- V.S.W.R: ≤1.3 (RX/TX)
- Isolation: ≥80dB@5MHz RX-TX spacing, ≥90dB@10MHz RX-TX spacing
- Connectors: N Female
- Temperature range: -22º to 158º F (-30℃~+70℃)
- Humidity: ≤95%
- Dimensions: 8.97 x 6.06 x 1.25 inches 228mm x 154mm x 32mm)
- Weight: 2.64 lbs (1.2kg)
- Application: Indoor
- Appearance: Surface sprayed paint black or aluminium natural color conductive oxide
More Information
| Manufacturer | XLT Communications |
|---|---|
| Warranty | 1 Year |
