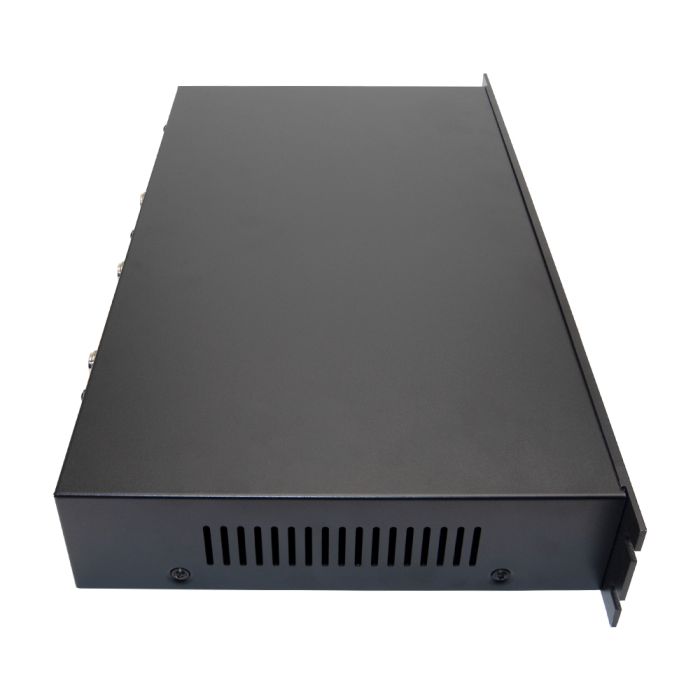

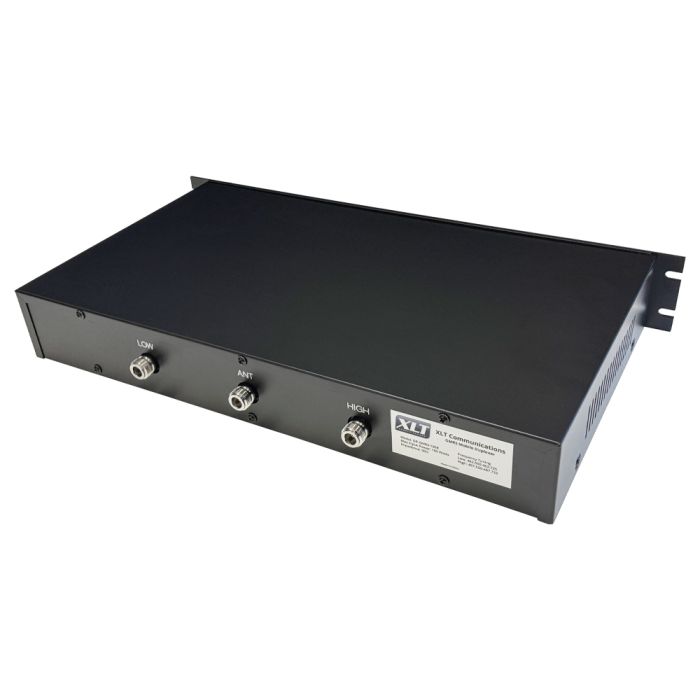

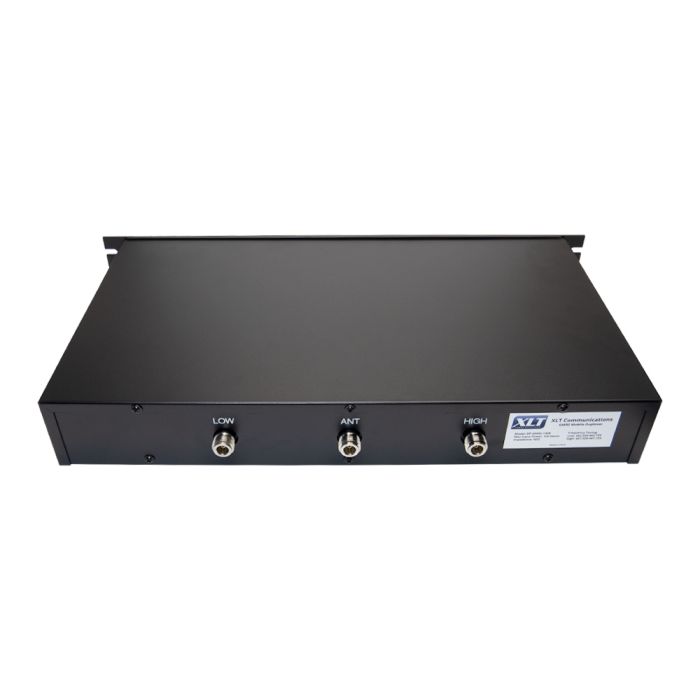

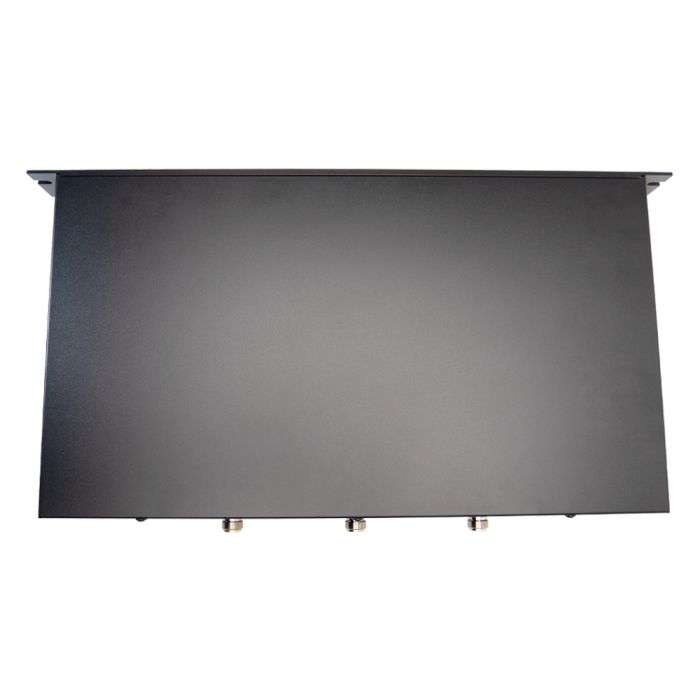

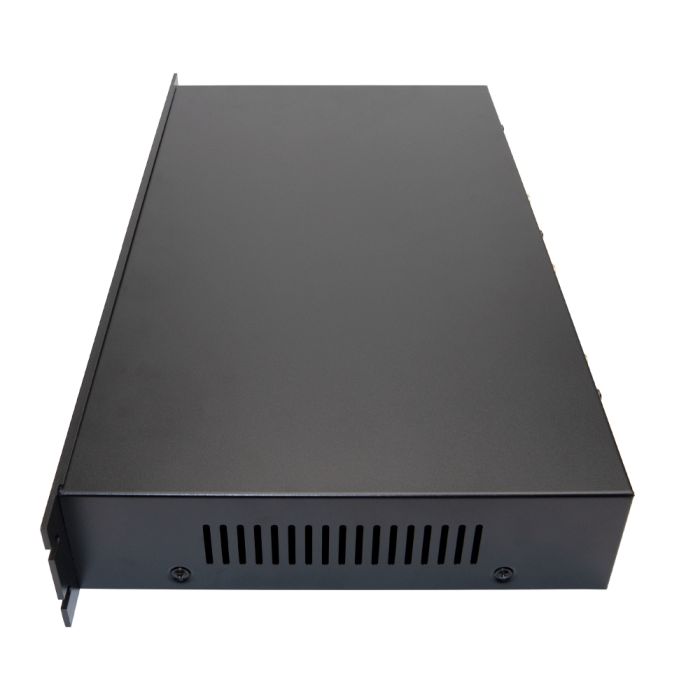

XLT Communications GMRS 1U Rack Mount Duplexer (100 Watt)
Description / XLT Communications GMRS 1U Rack Mount Duplexer (100 Watt)
XLT DP-GMRS-100R Rack Mount Reject Duplexer is designed for use in GMRS systems up to 100 watts. Applications include repeaters up to 100 watts and mobile full duplex radios. Works with GMRS repeaters. Also works with the Wouxun KG-1000G GMRS Mobile/Base Two Way Radio.
DP-GMRS-100R Specifications
- Rack mount cavity duplexer
- Compatible with all GMRS repeater frequencies
- Duplexer can be customized and supports frequency range 400-500 Mhz with >4 MHz spacing
- Model DP-GMRS-100R
- Works with GMRS repeaters. Also works with the Wouxun KG-1000G GMRS Mobile/Base Two Way Radio.
DP-GMRS-100R Specifications
- Supported Frequency Range: 400-500 MHz
- Pre-Configured Frequency Range: 462–467 MHz
- Low Pass: 462.550~462.725MHz
- High Pass: 467.550~467.725MHz
- Tx–Rx Separation: >4 MHz
- Tx-Rx Band Width: ±200KHz
- Max Input Power: 100W
- Insertion Loss:<1.2dB
- Impedance: 50Ω
- V.S.W.R.: <1.30
- Suppression: >80dB
- Isolation: ≥75dB
- Connectors:N Female)
- Temperature range: -4º to 122º F (-20℃~+50℃)
- 1RU 19″ rack mount (1.5U)
- Dimensions: 19.01 x 10.62 x 2.62 inches (483×270×66.7mm)
- Weight: 9.40 lbs (4.26 kg)
Videos
More Information
| Manufacturer | XLT Communications |
|---|---|
| Connector | N Female |
| Warranty | 1 Year |
